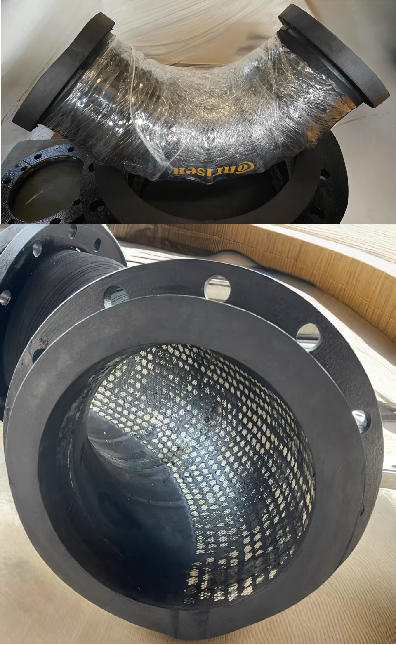

Rubber Elbow / Rubber-Ceramic Composite Elbow
Application: mining, dredging, infrastructure construction, etc.
Advantage:
This product serves as an ideal domestic replacement for imported brands, specifically engineered to address the core challenges in the mining industry. It effectively eliminates the issues of frequent maintenance and replacement, significantly reducing downtime and operational costs.
Beyond that, it offers superior engineering adaptability. Its simple and quick installation process allows it to be easily fitted into various complex and irregular pipeline layouts, greatly enhancing project efficiency. Furthermore, the product boasts exceptional corrosion resistance, ensuring long-term service life and reliable performance even in the most demanding conditions, thereby providing robust support for mining operations.
NOMINAL BORE(DN) mm | HOSE ID mm | Ceramic thickness standard mm | tandard WorkingPressure Pa | Max WorkingPressure Pa | Tortuosity | bending radius mm | CONNECTION |
FLANGE | |||||||
100 | 101 | 4 | 10-16 | 16-24 | 90° | 150/300 | Fixed/rotary |
150 | 152 | 6 | 10-16 | 16-24 | 90° | 225/450 | Fixed/rotary |
200 | 203 | 6 | 10-16 | 16-24 | 90° | 300/600 | Fixed/rotary |
250 | 254 | 6 | 10-16 | 16-24 | 90° | 375/750 | Fixed/rotary |
300 | 304 | 6 | 10-16 | 16-24 | 90° | 450/900 | Fixed/rotary |
350 | 355 | 6 | 10-16 | 16-24 | 90° | 525/1050 | Fixed/rotary |
400 | 406 | 6 | 10-16 | 16-24 | 90° | 600/1200 | Fixed/rotary |
450 | 457 | 6 | 10-16 | 16-24 | 90° | 675/1350 | Fixed/rotary |
500 | 508 | 6 | 10-16 | 16-24 | 90° | 750/1500 | Fixed/rotary |
