MINING TRUCK

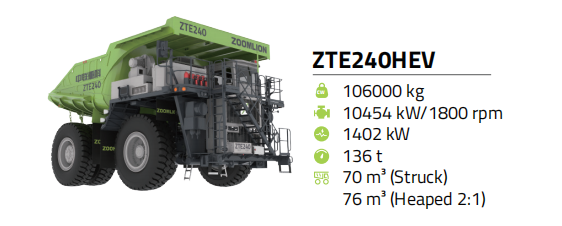

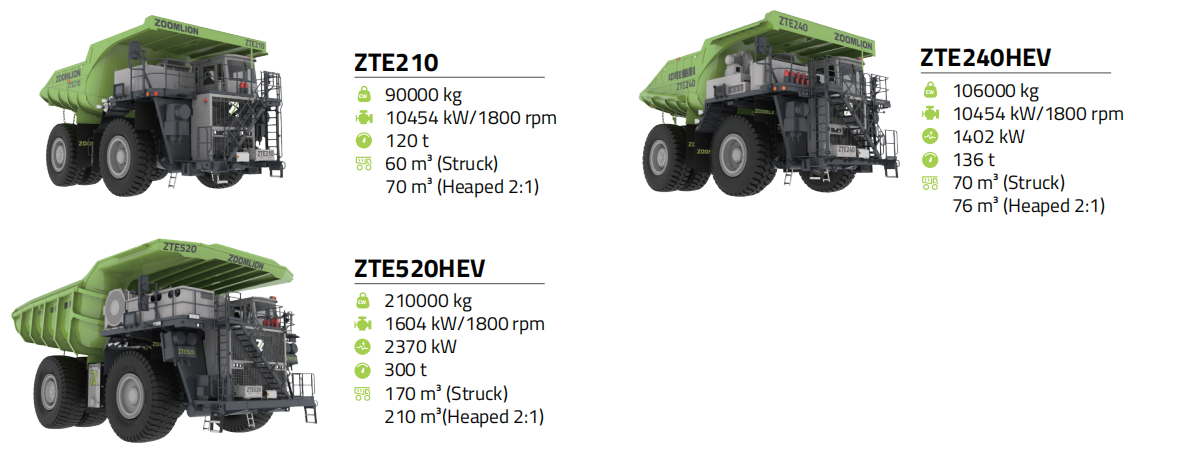

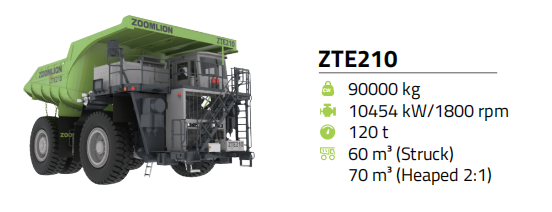

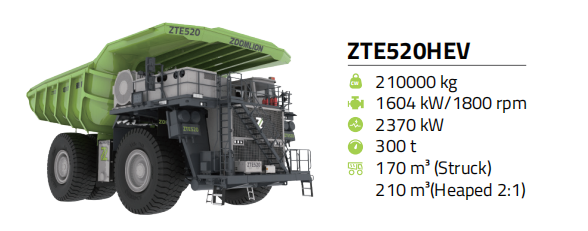

ZTE SERIES

Equipped with mining customized high-horsepower engine + AC transmission system, strong power and high transportation efficiency

The frame is a welded frame made of low-alloy and high-strength steel, consisting of a pair of longitudinal beams and four crossbeams. The

longitudinal and transverse beams are all box shaped cross-sectional structures, and 100% of important welds have undergone ultrasonic

testing, with low stress and strong fatigue resistance. The overall design adopts computer-aided design and finite element optimization analy-

sis.

The front suspension adopts an independent hydraulic and pneumatic suspension to ensure driving stability and comfort; The rear axle is

connected to the frame through hydraulic and pneumatic suspension and A-frame pull rods, which can adapt to changes in load and road condi-

tions, and has high reliability.

The cargo compartment adopts wear-resisting and high-strength bottom and side panels, with a sturdy structure and long service life. The cargo

compartment section adopts a U-shaped structure; The bottom adopts a single slope structure, ensuring smooth and clean unloading. Equipped

with rear wheel blockers and safety ropes.
