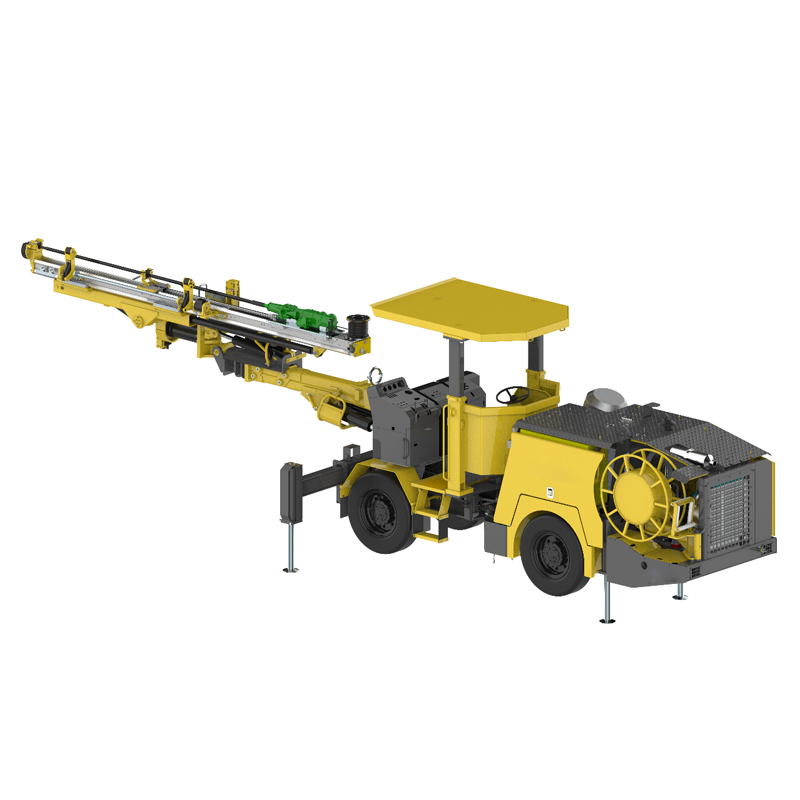

Equipment production unit for the construction of foundations XCMGXUD135

Quantity:
Availability:





Inquire Add to Basket

Product Description

Parameters

Function selection table

The main configuration

1. Introduction

XUD135 is mainly suitable for earthwork in underground gold, iron, copper and other metal mines, gypsum ores, phosphate ores and other non -metallic mines, as well as for hydropower projects, small tunnels, inclined mines, water supply pipes, etc. It can be used for explosive work and anchor openings. The equipment uses a hydraulic drilling system of rocky breeds, which has an advanced system, rapid speed of rock drilling and high efficiency. The whole machine has a compact design and flexible maneuverability, which makes it convenient for working in small space. The maximum coverage area is 35 ㎡.

2. Main points Introduction

Boer

The bunch of the famous brand has the characteristics of supervisoryness for bending, high drilling speed and low loss of drilling tools, etc.

Innings

Light aluminum beam with high bending and twisting strength for maximum strength. A unique single -layer structure of the hose coil, with a reliable design of the pipe clamp, good characteristics of the tension of the hose, effectively extends the life of the hose, reduces the strength for maintenance;

Arrow

fully parallel retention, square cross section, high rigidity, fast and accurate positioning;

Drilling system

It has functions of confusion, air defense and automatic reverse sliding, which can effectively increase drilling efficiency and reduce the loss of drilling tools.

Hydraulic system

Auxiliary movements of jacks and ceiling lamps use the electronic control design, and the hydraulic pipeline is simple and convenient to maintain.;

Electric system

Electric components were selected from world -famous brands, such as Schneider and Siemens, with high reliability and long service life. It is equipped with the functions of protection and alarm, such as protection against soil closing, protection against phases sequence, protection against engine overload and engine failure alarm.

Cabin

The ceiling of the cab can be lifted and lowered to meet the needs of driving and working in tunnels of different sizes;

Hood

The hood has a full coating design that provides safe and reliable protection of power, transmission, hydraulic, electric and other systems.

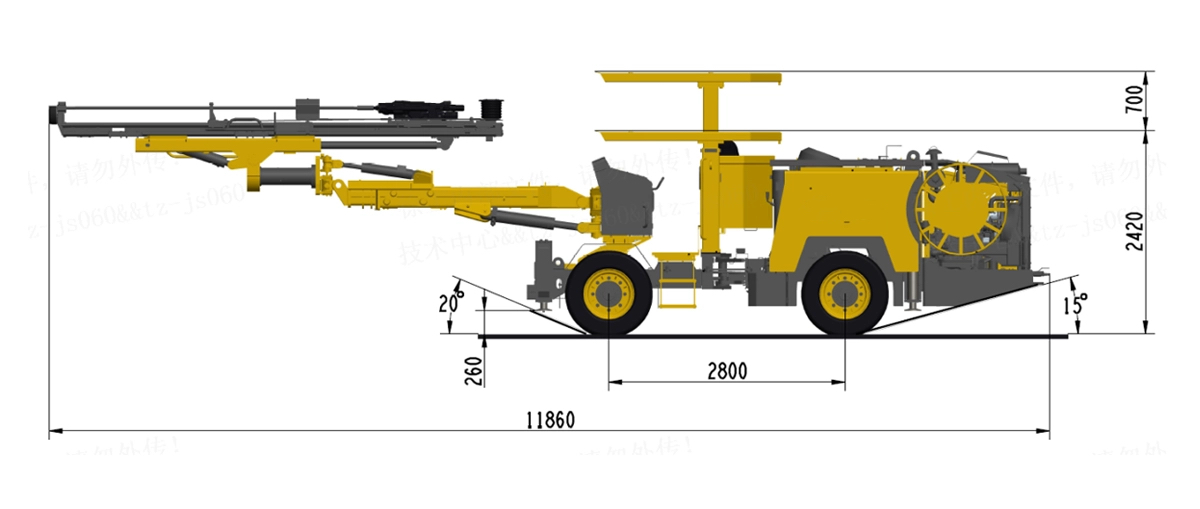

Measurement

b4ed7ba022ebc22eed2c937f4efc72b

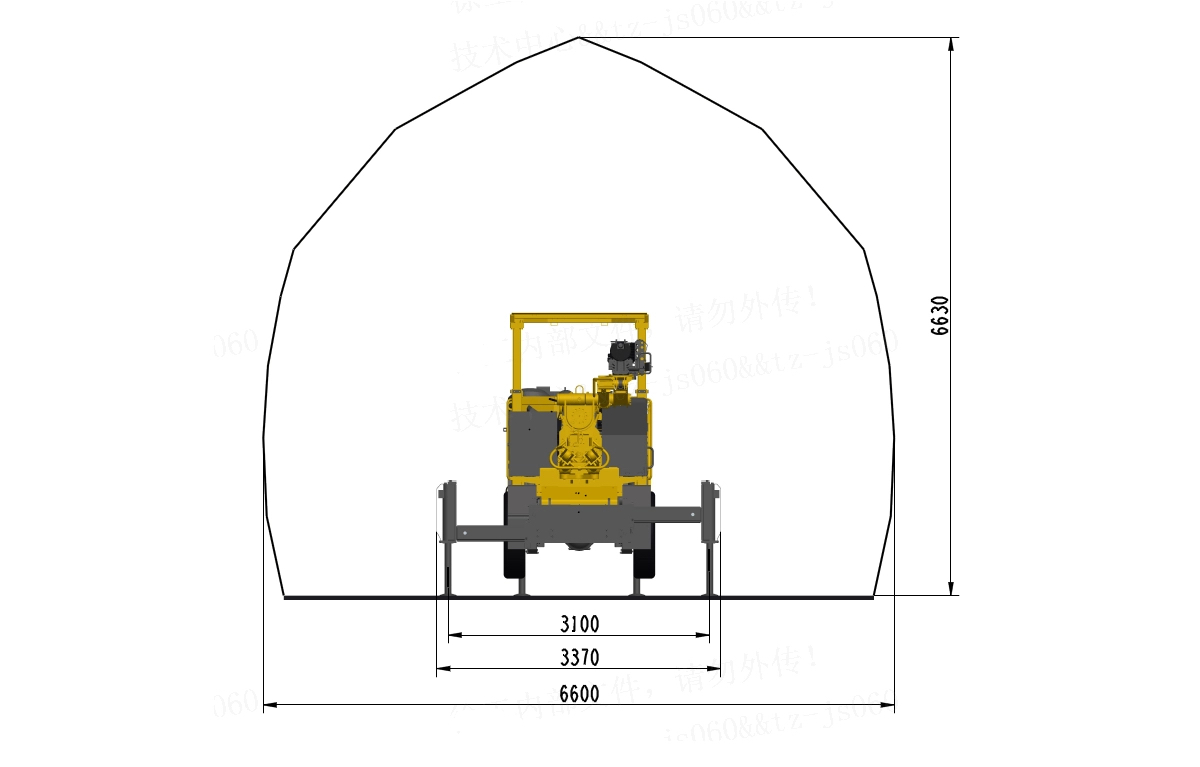

Coating area

0ce2b4cfdeb0977e26ea762bcf1c670

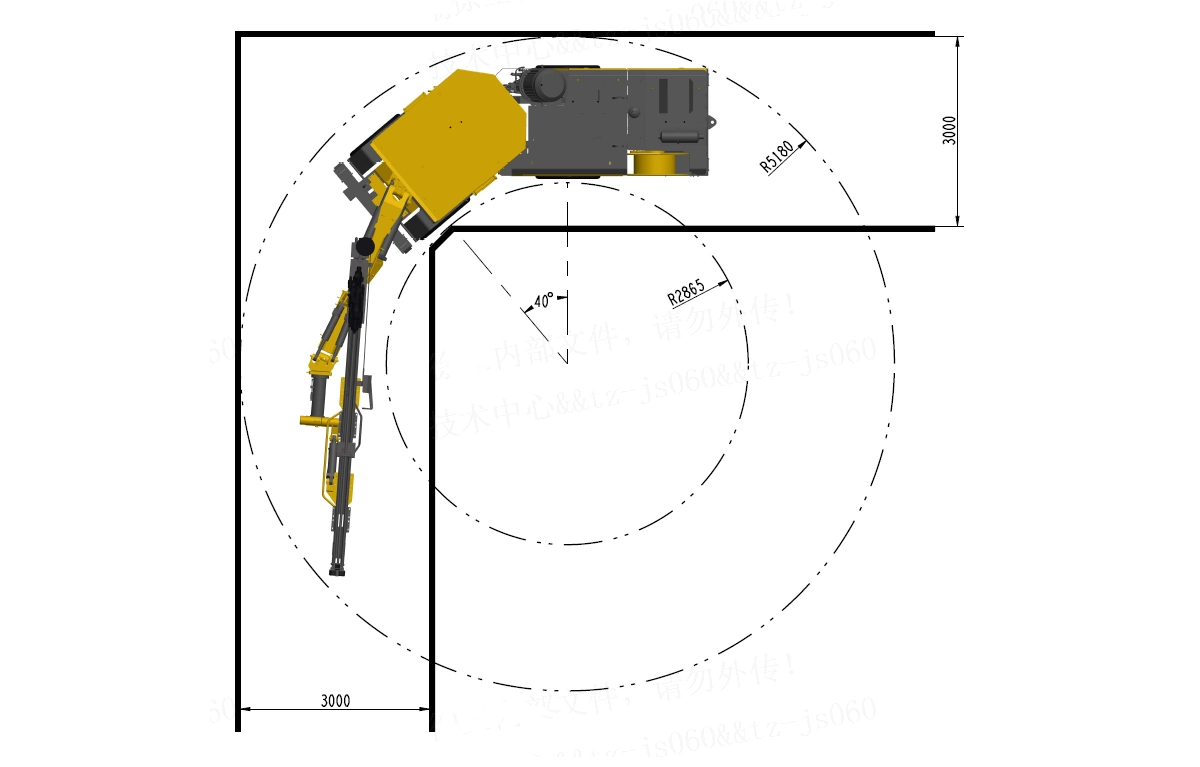

Cross -country crossing

9deeaa4928b2820740d9b344ec20824

No.	Description			Data
Ⅰ	The main parameters
1	Weight (kg)			13300
2	Dimensions (mm)			11860 × 2065 × 2420 (3120)
3	Coating area (width × height, mm)			6600 × 6630
4	Turning radius (mm)			≤5500
5	Maximum coating area (m2)			35
6	Minimum mine height (m)			3.5
Ⅱ	Detailed configuration
1	Rocky drill	Model		HC109	PD380
		Mark		Montabert	PERALD
		Maximum impact pressure (bar)		120-135	200
		Impact power (kW)		18.8	21
		Maximum strike frequency (Hz)		38-49	56
		Energy to blow (J)		296-350	380
		Maximum rotation pressure (bar)		140	200
		Maximum torque (n · m)		730	820
		Rotation speed (rpm)		176	280
		Weight (kg)		142	195
2	Boom	Quantity		1
		Management mode		Direct positioning of the front and rear triangle
		Coating area （㎡）		35
		Arrows departure （mm）		1250
		Max. lifting angle （°）		+65 °/-30 °
		Max. rotation angle （°）		± 40 °
		Flood departure （mm）		1250
		Parallel retention		full
3	Feed	Quantity		1
		Feed mode		Hydraulic cylinder + cable
		Total length （mm）		5437/5986 (OP)
		Feed force （kN）		15
		Drill length （mm）		3700/4310 (OP)
		Hole diameter (mm)		33-64/45-102 (OP)
		Opening depth （mm）		3400/4000 (OP)
		The turning angle （°）		± 180
		Max. rotation angle （°）		-4 ~ 90
4	Carrier	Speed (km/h)		≤18
		Overcome slope (°)		14
		Road clearance (mm)		≥260
		The wheelbase of the front and rear wheels (mm)		2800
		Front/rear wheels width (mm)		1740/1440
		Type of front/rear tires × quantity		9-20 × 2/9-20 × 2
		Engine	Manufacturers	Yuchai		Weichai
			Power (kW)	66		60
			Emissions	China ⅳ		China ⅲ
		Full -wheel drive		Yes
		Parking system		Standard configuration: working brake - hydraulic, and the parking brake is mechanical; Additionally: working brake and parking brake - sahr
		Sharnary steering		Yes
		Fuel tank, volume (l)		60
5	Hydraulic system	Management mode		Direct Direct Direct Direct Management
		Engine power (kW) × quantity		55 × 1
		Manufacturers of the main pump		Danfoss/ Hengli/ Sunbun
		Nominal pressure of the main hydraulic pump (bar)		140/180
		The working volume of the main hydraulic pump (l/min)		100
		Manufacturers of auxiliary hydraulic pump		Danfoss/ Hengli/ Sunbun
		Nominal pressure of the auxiliary hydraulic pump (bar)		230
		Working volume of auxiliary hydraulic pump (l/min)		60
		The volume of hydraulic oil tank (l)		240
		Filtering (MKM)		10
6	Air system	Manufacturers		Mattei		CART
		Performance (l/ min)/ air pressure (bar)		700/8		600/8
		Air flow (l/min)		300
7	Water system	Manufacturers		CNP
		Power (kW)		3
		Performance (m3/h)		5
		Minimum water pressure at the entrance (bar)		2
		Nominal pressure (bar)		12.4
		Water pressure during drilling (bar)		15-25
8	Electric system	Manufacturers		Schneider etc
		Main engines (kW)		55
		Total installed capacity (kW)		63
		Voltage (B)/ frequency (Hz)		380/50
		Cable length (m)		80
		Launch method		Star/Triangle
		Defense protection		Yes
		PROTECTION against overloading electric motors		Yes
		Short circuit protection		Yes

Function selection table

（● = standard ；○ = option ）：
Two -step protection against jamming	●	Manual centralized lubricant	●
Automatic protection against idle	●	Shock without water	●
Puffing system	●	Stop the main engine when the air supply is stopped	●
Low -level oil indicator	●	Level	●
Oil temperature indicator on the oil tank	●	Sound signal and reverse alarm	●
Manual pump for oil filling	●	Telescopic feed	○
Large holes drilling system	●	Arrow for greater working height	○
Phase sequence indicator	●	The working brake uses a normally closed system	○
Earth	●	Set for purging holes	○
Digital voltmeter/ammeter	●	Anti -corrosion components	○
Electronic protection against overload of electric motors	●	System for adding a rod with one rod	○
The arrow is completely parallel to hold	●	Feed the rod 4.3 m	○

The main configuration

No.	Component	Country	Brand	quantity
1	Engine	China	Yuchai/weichai	1
2	Front axle	China	XCMG	1
3	The rear axle	China	XCMG	1
4	Boer	France/ China	MONTABERT/PERALD	1
5	Electric motors	Germany/China/China	Siemens/Wolong/Beide	1
6	Air compressor	China	Mattei/Cart	1
7	Water pumping pump	China	CNP	1
8	Transmission	China	XCMG	1
9	Gidrotransformer	China	XCMG	1
10	Cable coil	China	Hinar / Credsun / XCMG	1
11	Shock hydraulic pump	Denmark/ China/ China	Danfoss/ Hengli/ Sunbun	1
12	Positional hydraulic pump	Denmark/China/China	Danfoss/ Hengli/ Sunbun	1
13	Rotor hydraulic pump	USA/China	Permco/ JINAN YEYABENG	1
14	Two -stage hydraulic pump	USA/China	Permco/Jinan Yeyaben	1
15	Cable	China	Trokabel/Kaste	80m
