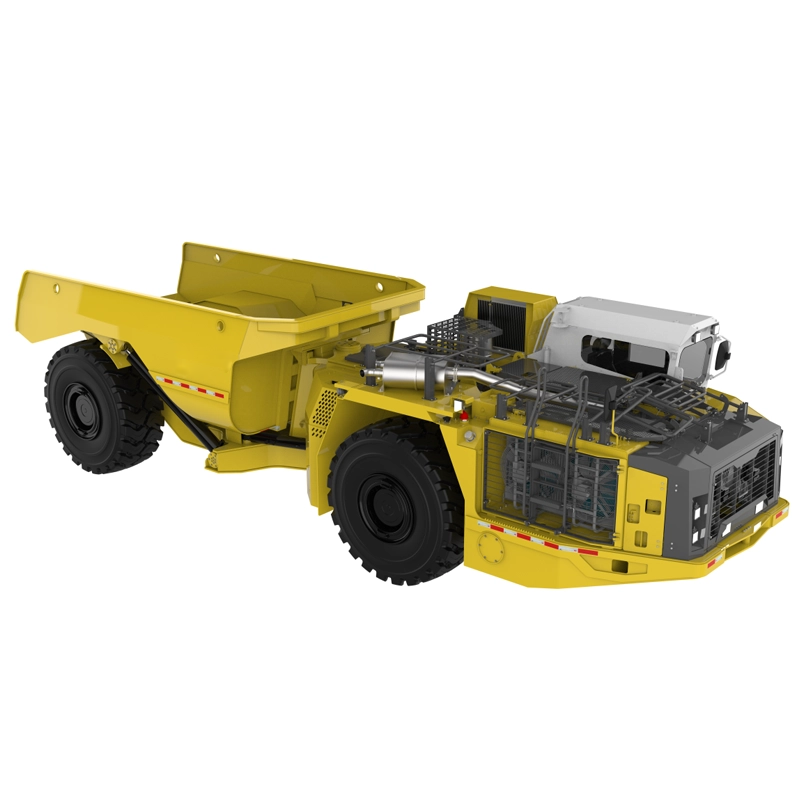

Technical characteristics of the underground truck XUT545

1. Introduction to the product

XUT545 is a high-performance 45-ton, jointly underground career dump truck for use in ruts 4.5 x 4.5 m. The truck has innovative functions that allow you to easily cope with harsh working conditions, providing high power, reliability and adaptability to help you increase productivity as much as possible.

2. Main points Introduction

Power gear

The Volvo diesel engine corresponding to the Chinese emission standard at the ⅲ stage. The exhaust system uses the DOC+DPF+muffler configuration, which is energy -saving and environmentally friendly. The engine cooling system uses a piston pump of a variable working volume and a hydraulic engine as a power source, and the engine control unit controls the operating volume of a variable volume pump in accordance with its own signal, then controls the engine speed and, finally, implements the engine's thermal balance. And the automatic engine brake is standard.

Transmission

The hydrotransformer with automatic lock, a fully automatic transmission with an electrical transmission system can significantly improve the operational characteristics of the car. Sahr is equipped, simplifying the hydraulic brake chain and increasing the reliability and safety of braking. Equipped with a vortex slowberry for safer description conditions.

Hydraulics

The design using a sensitive to the load of the system variable. Independent cooling system and independent fuel tank for the axis brakes. And the steering system uses a combination of a hydraulic steering mechanism and a valve valve.

Electronic control system

The connection of the CAN tire and the built -in electronic handle are standard. A multifunctional display, on -board diagnostics indicating the condition of the machine can intellectually diagnose and signal the malfunctions. And set up a driving camera (including the rear view camera, right and front chambers).

Cabin

The FOPS/ROPS cabin is equipped with an air conditioner with a cooling and heating function, a safe glass, a controlled steering wheel, a three -point seat belt, a seat with a pneumatic suspension, etc. There are no open hydraulic and electric pipelines in the cabin, which ensures safety and comfort.

Lid

Basically, protection and maintenance of windows for mining machines are provided. The upper part is equipped with anti -slip stickers and additional protective fences that are safe, reliable and convenient for maintenance.

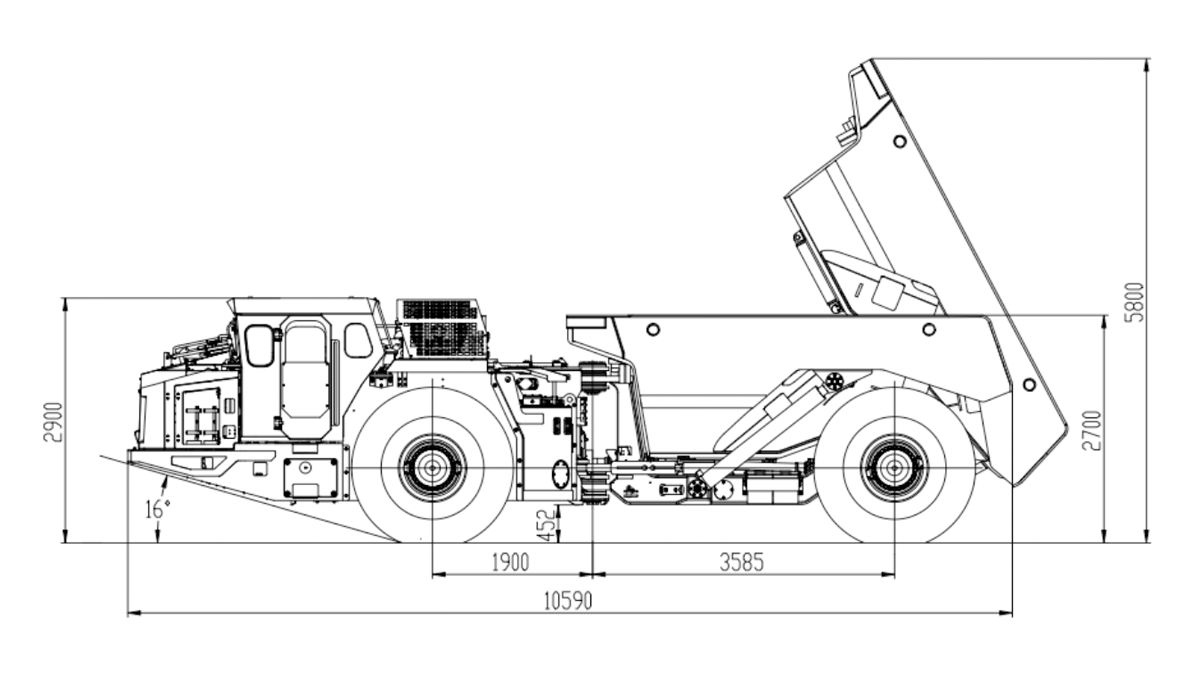

Measurement

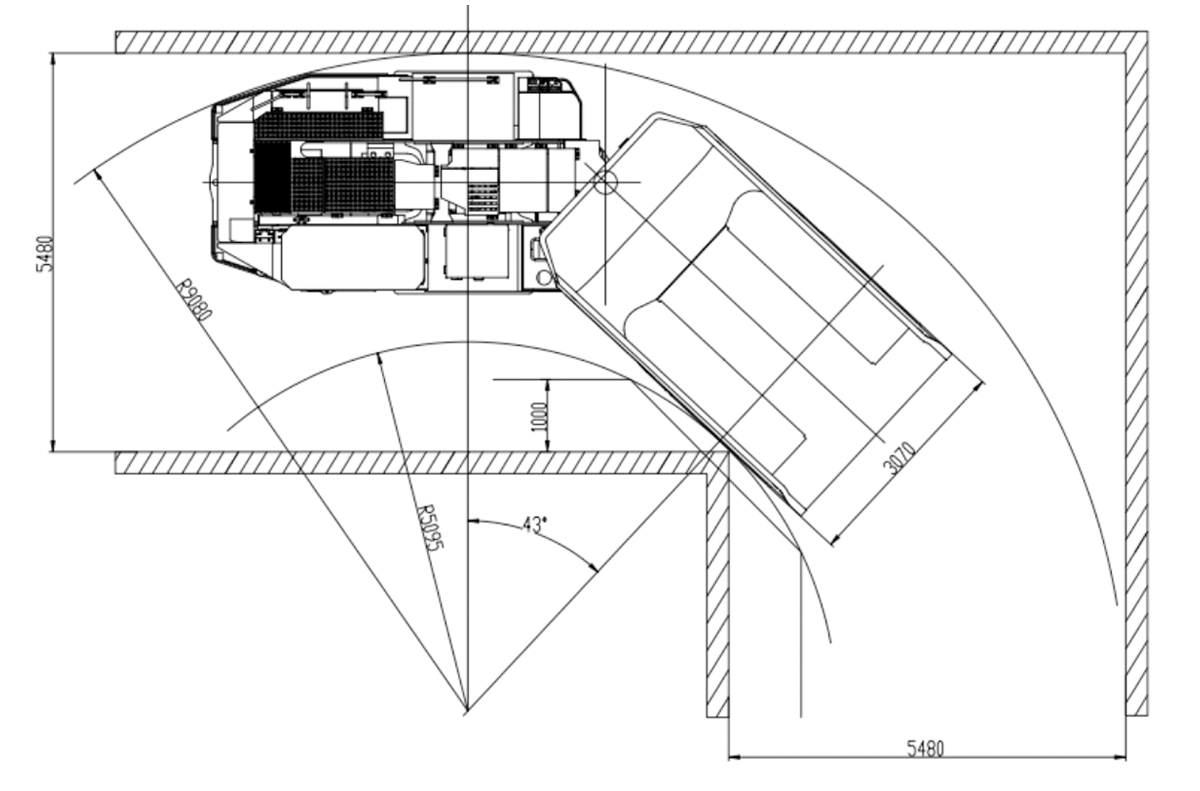

Cross -country crossing
