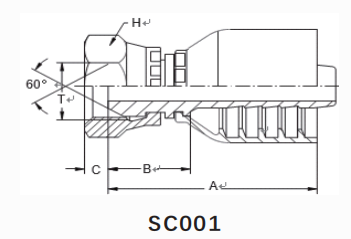

| BSPP FEMALE 60°CONE | PART NO. | THREAD T | H0ST B0RE | DIMENSI0NS | |||
| IS08434-6 | Nominal Bore （DN) | DASH Size | A | B | H | ||
  | SC001-04-04 | G1/4x19 | 6 | -4 | 41 | 18.5 | 19.0 |
| SC001-06-05 | G3/8x19 | 8 | -5 | 42 | 19.5 | 22.0 | |
| SC001-06-06 | G3/8x19 | 10 | -6 | 46 | 20.0 | 22.0 | |
| SC001-08-08 | G1/2x14 | 12 | -8 | 51 | 22.5 | 27.0 | |
| SC001-10-10 | G5/8x14 | 16 | -10 | 56 | 25.3 | 30.0 | |
| SC001-12-12 | G3/4x14 | 20 | -12 | 61 | 25.0 | 32.0 | |
| SC001-16-16 | G1x11 | 25 | -16 | 70 | 27.8 | 41.0 | |
| SC001-20-20 | G1-1/4x11 | 32 | -20 | 84 | 36.0 | 50.0 | |
| SC001-24-24 | G1-1/2x11 | 40 | -24 | 92 | 35.5 | 55.0 | |
