Suitable for harsh and high-temperature environments, offering excellent tensile strength and resistance to most chemicals.
| Hose Code | Hose Size | Hose Inner Diameter | Wall Thickness | Hose Outer Diameter | Max. Working Pressure | Min. Burst Pressure | Min. Bend Radius |
| Technical Specifications | PART NO. | INCH | MIN MM | MAX MM | MM | MIN MM | MAX MM | Bar | Bar | MM |

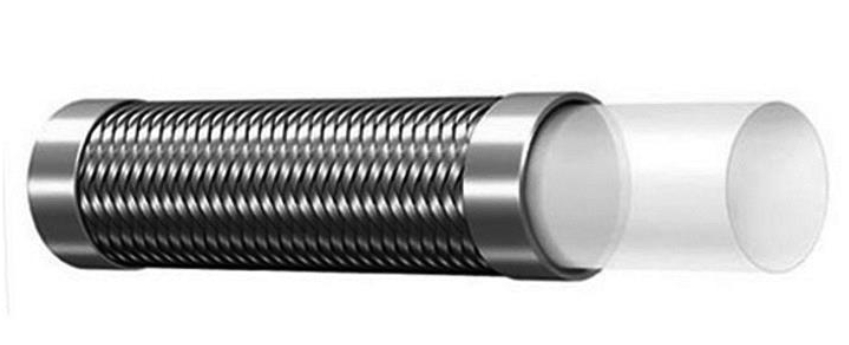

Inner Layer: Semi-transparent, smooth polytetrafluoroethylene (PTFE)
Outer Layer: AISI 304 stainless steel braid, anti-static
Temperature Range: -73 °C (–99 °F) to +260 °C (+500 °F) | TWK-03 | 1/8" | 3.3 | 3.51 | 0.7 | 5.8 | 6.4 | 275.0 | 1100 | 25 |
| TWK-04 | 3/16" | 4.65 | 5.21 | 0.7 | 7.3 | 8.3 | 200.0 | 800 | 35 |
| TWK-05 | 1/4" | 6.17 | 6.73 | 0.7 | 8.9 | 9.5 | 175.0 | 700 | 45 |
| TWK-06 | 5/16" | 7.54 | 8.38 | 0.7 | 10.4 | 11.6 | 150.0 | 600 | 50 |
| TWK-07 | 3/8" | 9.27 | 9.78 | 0.7 | 12.2 | 13.2 | 135.0 | 540 | 55 |
| TWK-08 | 13/22" | 10.08 | 10.85 | 0.7 | 13.0 | 14.2 | 130.0 | 520 | 65 |
| TWK-10 | 1/2" | 12.42 | 13.18 | 0.7 | 15.4 | 16.7 | 120.0 | 480 | 70 |
| TWK-12 | 5/8" | 15.37 | 16.38 | 0.7 | 18.8 | 20.0 | 100.0 | 400 | 130 |
| TWK-14 | 3/4" | 18.62 | 19.38 | 0.8 | 21.6 | 22.86 | 90 | 360 | 190 |
| TWK-16 | 7/8" | 21.46 | 22.99 | 0.8 | 24.6 | 26.92 | 70.0 | 280 | 250 |
| TWK-18 | 1 | 24.64 | 26.16 | 0.8 | 27.81 | 29.85 | 65.0 | 260 | 270 |
| TWK-20 | 1-1/8" | 27.81 | 29.34 | 1 | 31.95 | 33.53 | 55.0 | 220 | 300 |

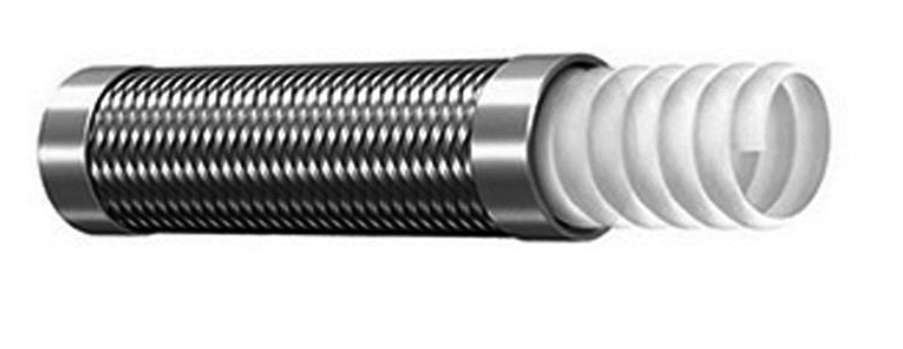

Inner Layer: Semi-transparent, corrugated polytetrafluoroethylene (PTFE)
Outer Layer: AISI 304 stainless steel braid, anti-static
Temperature Range: –73 °C (–99 °F) to +260 °C (+500 °F) | CLWB106-04 | 1/4" | 6.2 | 7 |
| 10 | 11 | 175 | 700.0 | 20 |
| CLWB108-05 | 5/16" | 7.2 | 8.8 |
| 12 | 13 | 160 | 640.0 | 20 |
| CLWB109-06 | 3/8" | 10 | 11 |
| 15 | 16.2 | 130 | 520.0 | 20 |
| CLWB113-08 | 1/2" | 13 | 14 |
| 18 | 19 | 100 | 400.0 | 25 |
| CLWB119-12 | 3/4" | 15.9 | 20.5 |
| 26 | 27.5 | 70 | 280.0 | 65 |
| CLWB125-16 | 1 | 25.5 | 26.5 |
| 33 | 34.5 | 55 | 220.0 | 89 |
