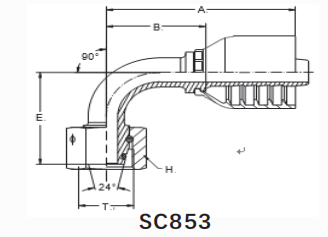

| 90°METRIC FEMALE 24°CONE O-RING L.T. | PART NO. | THREAD T | H0ST B0RE | DIMENSI0NS | ||||
| IS08434-1--DIN3865 | Nominal Bore （DN) | DASH Size | A | B | E | H | ||
  | SC853-14-04 | M14x1.5 | 6 | -4 | 55 | 32.0 | 36.0 | 17.0 |
| SC853-16-05 | M16x1.5 | 8 | -5 | 55 | 32.0 | 41.0 | 19.0 | |
| SC853-18-06 | M18x1.5 | 10 | -6 | 64 | 38.0 | 44.0 | 22.0 | |
| SC853-22-08 | M22x1.5 | 12 | -8 | 77 | 49.0 | 53.0 | 27.0 | |
| SC853-26-10 | M26x1.5 | 16 | -10 | 85 | 54.0 | 58.0 | 32.0 | |
| SC853-30-12 | M30x2 | 20 | -12 | 98 | 62.0 | 67.0 | 36.0 | |
| SC853-36-16 | M36x2 | 25 | -16 | 119 | 77.0 | 77.0 | 41.0 | |
| SC853-45-20 | M45x2 | 32 | -20 | 143 | 96.0 | 85.0 | 50.0 | |
| SC853-52-24 | M52x2 | 40 | -24 | 167 | 110.0 | 105.0 | 60.0 | |
