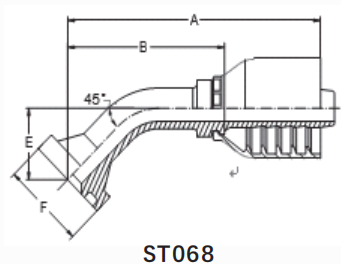

| 45°SAE FLANGE3000 PSI CONE 61 | PART NO. | THREAD T | H0ST B0RE | DIMENSI0NS | ||||
| SAE J518 | Nominal Bore （DN) | DASH Size | A | B | E | F | ||
  | ST068-08-08 | 1/2 | 12 | -8 | 90 | 62.0 | 24.0 | 30.0 |
| ST068-12-12 | 3/4 | 20 | -12 | 114 | 78.0 | 30.0 | 38.0 | |
| ST068-16-16 | 1 | 25 | -16 | 130 | 88.0 | 30.0 | 45.0 | |
| ST068-20-20 | 1-1/4 | 32 | -20 | 150 | 102.0 | 35.0 | 51.0 | |
| ST068-24-24 | 1-1/2 | 40 | -24 | 172 | 115.0 | 40.0 | 60.0 | |
| ST068-32-32 | 2 | 50 | -32 | 205 | 146.0 | 43.0 | 71.0 | |
