Steel Wire Braided Hydraulic Hose

Steel Wire Braided Hydraulic Hose
Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Steel Wire Braided Hydraulic Hose Hydraulic hose EXCEEDS SAE 100 RIAT / EN 853 1SN EXCEEDS SAE 100 RIAT / EN 853 2SN
Product Description

Technical Specifications

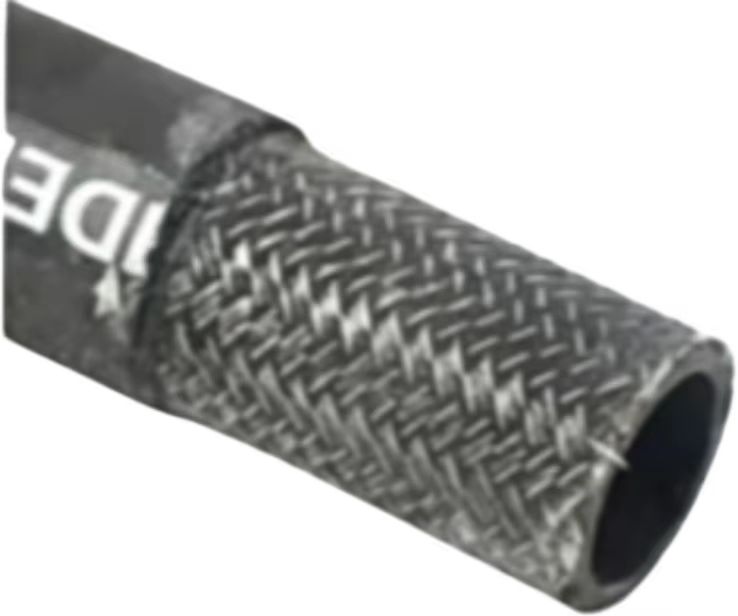

  • Inner Tube: Synthetic rubber, manufactured using a seamless, continuous extrusion process for uniform thickness and no weak points.

  • Reinforcement: Single layer of high-tensile steel wire braid.

  • Cover: Smooth, abrasion-resistant synthetic rubber. Excellent resistance to oil, fuel, and weathering (ozone & UV).

  • Temperature Range:

    • -40 °C to +100 °C (-40 °F to +212 °F)

  • Max. Temperature for Air:

    • +70 °C (+160 °F) Steel Wire Braided Hydraulic Hose Steel Wire Braided Hydraulic Hose Steel Wire Braided Hydraulic Hose

P/NNominal I.D.Hose SizeHose I.D.Hose O.D.Max. Working Pressure(MWP)Minimum Burst Pressure（MBP)Minimum Bend Radius (MBR)Weight
PART NO.MMDASHINCHMMMMMpaMpaMMG/M
1SNE-046-41/4"6.413.329.0116.090230
1SNE-058-55/16"7.915.125.0100.0104270
1SNE-0610-63/8"9.517.223.092.0115330
1SNE-0812-81/2"12.720.220.080.0160420
1SNE-1016-105/8"15.923.615.060.0180480
1SNE-1219-123/4"19.127.612.550.0215620
1SNE-1625-161"25.435.211.044.0270910
2SNE-046-41/4"6.414.945.0180.090365
2SNE-058-55/16"7.916.342.0168.0100435
2SNE-0610-63/8"9.518.838.5154.0115535
2SNE-0812-81/2"12.722.234.5138.0160630
2SNE-1016-105/8"15.925.429.0116.0180740
2SNE-1219-123/4"19.129.428.5112.0215920
2SNE-1625-161"25.43721.084.02701435
