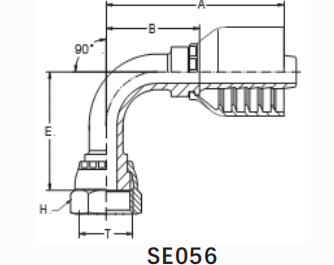

| 90°ORFS FEMALE FLAT SEAT | PART NO. | THREAD T | H0ST B0RE | DIMENSI0NS | ||||
| ISO 8434-3--SAEJ1453 | Nominal Bore （DN) | DASH Size | A | B | E | H | ||
 | SE056-12-12 | 1-3/16x12 | 20 | -12 | 96 | 60.0 | 58.0 | 36.0 |
| SE056-16-16 | 1-7/16x12 | 25 | -16 | 119 | 76.5 | 69.0 | 41.0 | |
| SE056-20-20 | 1-11/16x12 | 32 | -20 | 143 | 95.0 | 80.0 | 50.0 | |
| SE056-24-24 | 2x12 | 40 | -24 | 166 | 109.5 | 93.0 | 60.0 | |
