Hydraulic Hose SAE 4SP / SAE 4SH

Four-Layer Steel Wire Spiral Hydraulic Hose
Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

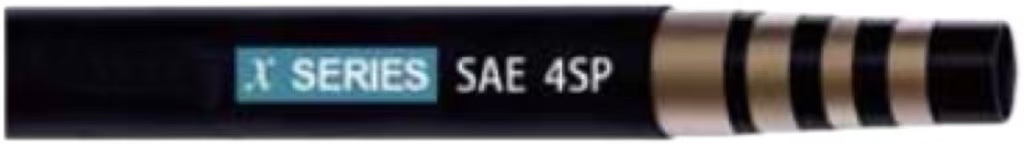

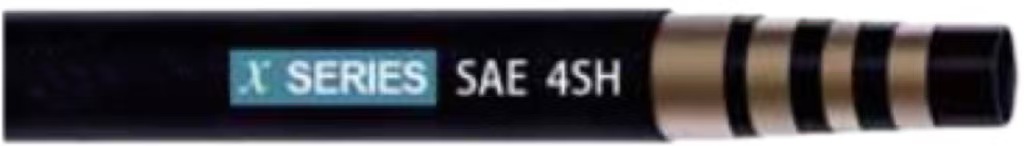

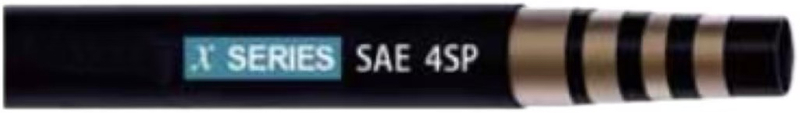

Four-Layer Steel Wire Spiral Hydraulic Hose SAE 4SP / EN856 SAE 4SH / EN856
Product Description

Technical Specifications

  • Inner Tube: Oil-resistant synthetic rubber.

  • Reinforcement: 4 layers of high-tensile steel wire spiral.

  • Cover: Abrasion-, ozone-, and weather-resistant synthetic rubber.

  • Temperature Range:

    • -40 °C to +120 °C (-40 °F to +248 °F)

  • Max. Temperature for Air:

    • +70 °C (+160 °F)

    Four-Layer Steel Wire Spiral Hydraulic Hose Four-Layer Steel Wire Spiral Hydraulic Hose Four-Layer Steel Wire Spiral Hydraulic Hose

P/NNominal I.D.Hose SizeHose I.D.Hose O.D.Max. Working Pressure(MWP)Minimum Burst Pressure（MBP)Minimum Bend Radius (MBR)Weight
PART NO.MMDASHINCHMMMMMpaMpaMMG/M
R9R-0610-63/8”9.521.444.5178.0180750
R9R-0812-81/2"12.924.941.5166.0230900
R9R-1016-105/8"1628.238.0152.02501060
R9R-1219-123/4"19.231.238.0152.03001630
R9R-1625-161"25.439.432.5130.03402070
4SHB-1219-123/4"19.231.242.0168.02801640
4SHB-1625-161"25.438.638.0152.03402120
4SHB-2031-201.1/4"31.845.835.0140.04602770
4SHB-2438-241.1/2"38.153.129.0116.05603770
4SHB-3251-322"50.867.825.0100.07005060
