| P/N | Nominal I.D. | Hose Size | Hose I.D. | Hose O.D. | Max. Working Pressure(MWP) | Minimum Burst Pressure（MBP) | Minimum Bend Radius (MBR) | Weight |
| Technical Specifications | PART NO. | MM | DASH | INCH | MM | MM | Mpa | Mpa | MM | G/M |

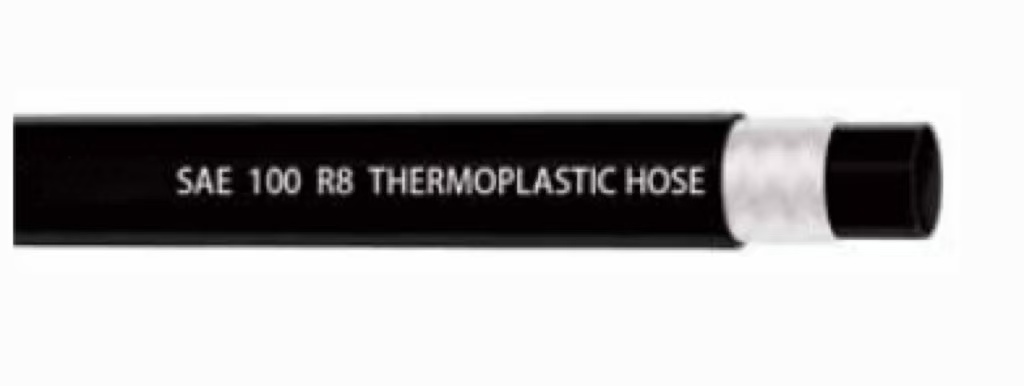

Inner Layer: Thermoplastic Polyester Elastomer
Reinforcement: Braided Polyester Fiber Layer
Cover: Black Polyurethane with micro-pinholes on the surface
Temperature Range:
-40 °C to +100 °C (-40 °F to +212 °F) | R8-02-SF-PP | 3 | -2 | 1/8" | 3.2 | 8.1 | 42.0 | 168.0 | 25 | 57 |
| R8-03-SF-PP | 5 | -3 | 3/16" | 4.8 | 10.3 | 35.0 | 140.0 | 25 | 87 |
| R8-04-SF-PP | 6 | -4 | 1/4" | 6.4 | 12.4 | 35.0 | 140.0 | 32 | 118 |
| R8-05-SF-PP | 8 | -5 | 5/16" | 8 | 14.2 | 30.0 | 120.0 | 45 | 147 |
| R8-06-SF-PP | 10 | -6 | 3/8" | 9.5 | 15.7 | 28.0 | 112.0 | 55 | 170 |
| R8-08-SF-PP | 12 | -8 | 1/2" | 12.7 | 19.3 | 24.5 | 98.0 | 77 | 229 |
| R8-10-SF-PP | 16 | -10 | 5/8" | 16 | 23.1 | 20.0 | 80.0 | 110 | 295 |
| R8-12-SF-PP | 20 | -12 | 3/4" | 19 | 26.4 | 15.5 | 62.0 | 140 | 372 |
| R8-16-SF-PP | 25 | -16 | 1 | 25.4 | 33.3 | 14 | 56 | 200 | 511 |
| R8-20-SF-PP | 32 | -20 | 1-1/4" | 31.8 | 42.0 | 10 | 40.0 | 300 | 750 |

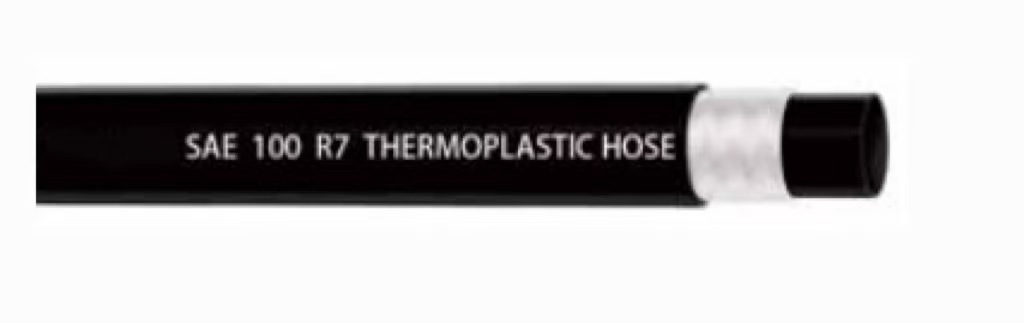

Inner Layer: Thermoplastic Polyester Elastomer
Reinforcement: Braided Polyester Fiber Layer
Cover: Black Polyurethane with micro-pinholes on the surface
Temperature Range:
-40 °C to +100 °C (-40 °F to +212 °F) | R7-02-SF-PP | 3 | -2 | 1/8" | 3.2 | 8.1 | 21 | 84.0 | 25 | 57 |
| R7-03-SF-PP | 5 | -3 | 3/16" | 4.8 | 10.3 | 21 | 84.0 | 25 | 80 |
| R7-04-SF-PP | 6 | -4 | 1/4" | 6.4 | 12.4 | 19 | 76.0 | 32 | 114 |
| R7-05-SF-PP | 8 | -5 | 5/16" | 8 | 14.2 | 17.5 | 70.0 | 45 | 142 |
| R7-06-SF-PP | 10 | -6 | 3/8" | 9.5 | 15.7 | 15.5 | 62.0 | 55 | 164 |
| R7-08-SF-PP | 12 | -8 | 1/2" | 12.7 | 19.3 | 14 | 56.0 | 77 | 229 |
| R7-10-SF-PP | 16 | -10 | 5/8" | 16 | 23.1 | 10.5 | 42.0 | 110 | 295 |
| R7-12-SF-PP | 20 | -12 | 3/4" | 19 | 26.4 | 9 | 36.0 | 140 | 356 |
| R7-16-SF-PP | 25 | -16 | 1 | 25.4 | 33.3 | 7 | 28.0 | 200 | 504 |
| R7-20-SF-PP | 32 | -20 | 1-1/4" | 31.8 | 42 | 7 | 28.0 | 300 | 737 |

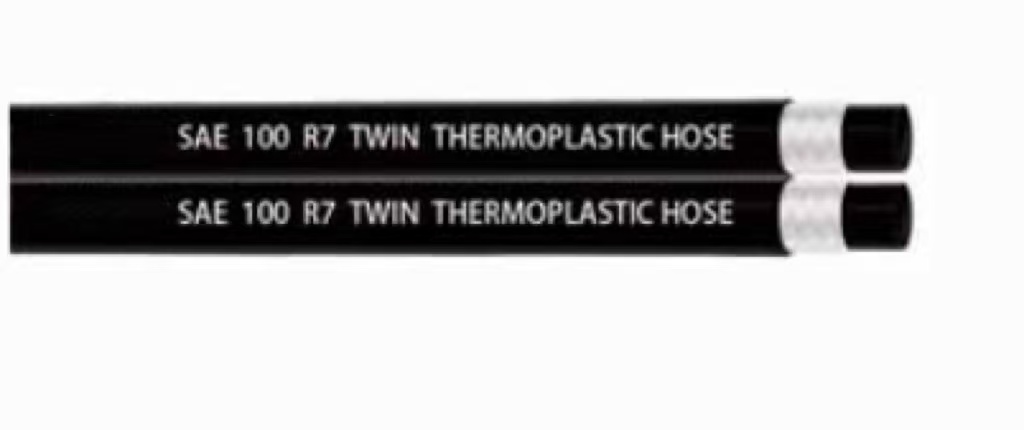

Inner Layer: Thermoplastic Polyester Elastomer
Reinforcement: Single-layer braided polyester fiber reinforcement on each hose
Cover: Black polyurethane with micro-pinhole surface texture
Temperature Range:
-40°C to +100°C (-40°F to +212°F) | R7WT-02-SF-PP | 3 | -2 | 1/8" | 3.2 | 8.1 | 21 | 84.0 | 25 | 114 |
| R7WT-03-SF-PP | 5 | -3 | 3/16" | 4.8 | 10.3 | 21 | 84.0 | 25 | 160 |
| R7WT-04-SF-PP | 6 | -4 | 1/4" | 6.4 | 12.4 | 19 | 76.0 | 32 | 228 |
| R7WT-05-SF-PP | 8 | -5 | 5/16" | 8 | 14.2 | 17.5 | 70.0 | 45 | 284 |
| R7WT-06-SF-PP | 10 | -6 | 3/8" | 9.5 | 15.7 | 15.5 | 62.0 | 55 | 328 |
| R7WT-08-SF-PP | 12 | -8 | 1/2" | 12.7 | 19.3 | 14 | 56.0 | 77 | 458 |
| R7WT-10-SF-PP | 16 | -10 | 5/8" | 16 | 23.1 | 10.5 | 42.0 | 110 | 590 |
| R7WT-12-SF-PP | 20 | -12 | 3/4" | 19 | 26.4 | 9 | 36 | 140 | 712 |
| R7WT-16-SF-PP | 25 | -16 | 1 | 25.4 | 33.3 | 7 | 28 | 200 | 1008 |
| R7WT-20-SF-PP | 32 | -20 | 1-1/4" | 31.8 | 42 | 7 | 28 | 300 | 1474 |
