Hydraulic Hose R1AT / R2AT

Technical Specifications

• Inner Tube: Oil-resistant synthetic rubber.

• Reinforcement: 1 or 2 layers of high-tensile steel wire braid.

• Cover: Black, synthetic rubber resistant to abrasion, ozone, and weathering.

• Temperature Range:

• -40 °C to +100 °C (-40 °F to +212 °F)

• Max. Temperature for Air:

• +70 °C (+160 °F)

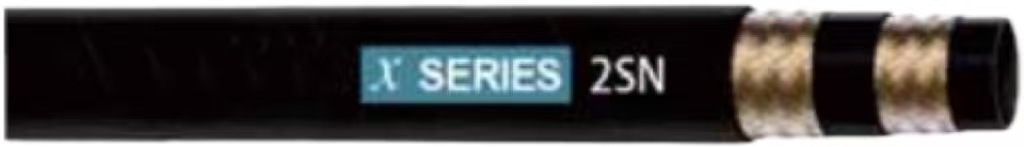

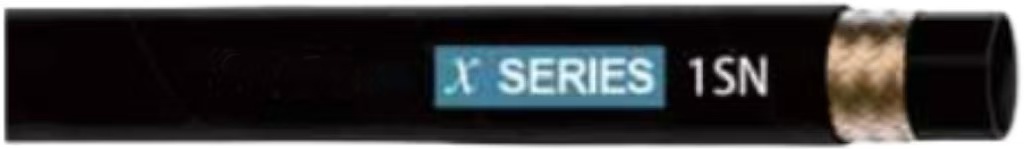

  Steel Wire Braided Hydraulic Hose Steel Wire Braided Hydraulic Hose Steel Wire Braided Hydraulic Hose

P/N	Nominal I.D.	Hose Size		Hose I.D.	Hose O.D.	Max. Working Pressure(MWP)	Minimum Burst Pressure（MBP)	Minimum Bend Radius (MBR)	Weight
PART NO.	MM	DASH	INCH	MM	MM	Mpa	Mpa	MM	G/M
R1T-04	6	-4	1/4"	6.6	13	22.5	90.0	100	220
R1T-05	8	-5	5/16"	8.1	14.4	21.5	86.0	115	270
R1T-06	10	-6	3/8"	10	16.9	18.0	72.0	130	340
R1T-08	12	-8	1/2"	13	20	16.0	64.0	180	420
R1T-10	16	-10	5/8"	15.9	23.2	13.0	52.0	200	510
R1T-12	19	-12	3/4"	19	27.2	10.5	42.0	240	660
R1T-16	25	-16	1"	25.4	35.2	8.7	35.2	300	960
R1T-20	31	-20	11/4"	31.8	43	6.3	25.2	420	1170
R1T-24	38	-24	11/2"	38.1	49.8	5.0	20.0	500	1500
R1T-32	51	-32	2"	50.8	63.3	4.0	16.0	630	1960
R1T-40	64	-40	21/2"	63.5	75.5	4.0	20.0	760	2535
R1T-48	76	-48	3"	76.2	88.8	3.5	16.0	900	2710
R2T-04	6	-4	1/4"	6.6	14.7	40.0	160.0	100	365
R2T-05	8	-5	5/16"	8.1	16.3	35.0	140.0	115	435
R2T-06	10	-6	3/8"	10	18.8	33.0	132.0	130	535
R2T-08	12	-8	1/2"	13	21.5	27.5	110.4	180	630
R2T-10	16	-10	5/8"	15.9	25	25.0	100.0	200	740
R2T-12	19	-12	3/4"	19	29.1	21.5	86.0	240	920
R2T-16	25	-16	1"	25.4	36.9	16.5	66.0	300	1435
R2T-20	31	-20	11/4"	31.8	47.4	12.5	50.0	420	1915
R2T-24	38	-24	11/2"	38.1	53.7	9.0	36.0	500	2255
R2T-32	51	-32	2"	50.8	66.6	8.0	32.0	630	2960
R2T-40	64	-40	21/2"	63.5	77.8	7.0	30.0	760	3810
R2T-48	76	-48	3"	76.2	90	5.0	24.0	900	4040
