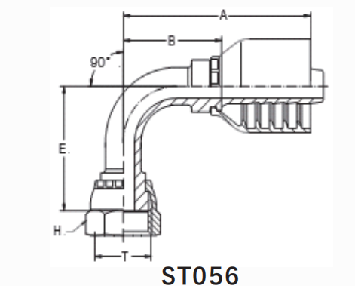

| 9O°ORFS FEMALE FLAT STAT | PART NO. | THREAD T | H0ST B0RE | DIMENSI0NS | ||||
| IS0 8434-3--SAEJ1453 | Nominal Bore （DN) | DASH Size | A | B | E | H | ||
  | ST056-04-04 | 9/16x18 | 6 | -4 | 52 | 29.5 | 28.5 | 17.0 |
| ST056-06-05 | 11x16x16 | 8 | -5 | 55 | 32.5 | 35.0 | 22.0 | |
| ST056-06-06 | 11/16x16 | 10 | -6 | 63 | 37.5 | 38.0 | 22.0 | |
| ST056-08-08 | 13/16x16 | 12 | -8 | 76 | 48.0 | 45.0 | 24.0 | |
| ST056-10-10 | 1x14 | 16 | -10 | 85 | 54.0 | 50.5 | 30.0 | |
| ST056-12-12 | 1-3/16x12 | 20 | -12 | 96 | 60.0 | 58.0 | 36.0 | |
| ST056-16-16 | 1-7/16x12 | 25 | -16 | 119 | 76.5 | 69.0 | 41.0 | |
| ST056-20-20 | 1-11/16x12 | 32 | -20 | 143 | 95.0 | 80.0 | 50.0 | |
| ST056-24-24 | 2x12 | 40 | -24 | 166 | 109.5 | 93.0 | 60.0 | |
