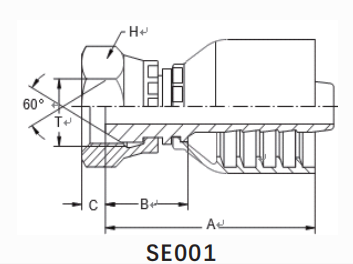

| BSPP FEMALE 60°CONE | PART NO. | THREAD T | H0ST B0RE | DIMENSI0NS | |||
| ISO 8434-6 | Nominal Bore （DN) | DASH Size | A | B | H | ||
  | SE001-12-12 | G3/4x14 | 20 | -12 | 61 | 25.0 | 32.0 |
| SE001-16-16 | G1x11 | 25 | -16 | 70 | 27.8 | 41.0 | |
| SE001-20-20 | G1-1/4x11 | 32 | -20 | 84 | 36.0 | 50.0 | |
| SE001-24-24 | G1-1/2x11 | 40 | -24 | 92 | 35.5 | 55.0 | |
