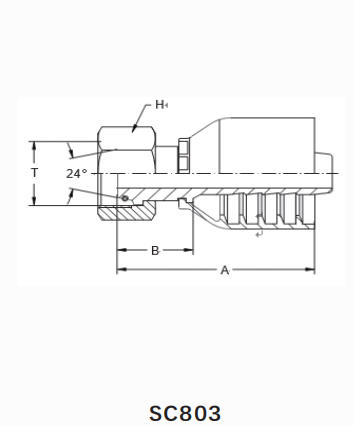

| METRIC FEMALE 24°CONE O-RING L.T. | PART NO. | THREAD T | H0ST B0RE | DIMENSI0NS | |||
| IS08434-1--DIN 3865 | Nominal Bore （DN) | DASH Size | A | B | H | ||
  | SC803-14-04 | M14x1.5 | 6 | -4 | 43 | 20.5 | 17.0 |
| SC803-14-04L | M14x1.5 | 6 | -4 | 46 | 25.0 | 17.0 | |
| SC803-16-05 | M16x1.5 | 8 | -5 | 43 | 20.0 | 19.0 | |
| SC803-16-05L | M16x1.5 | 8 | -5 | 48 | 25.0 | 19.0 | |
| SC803-18-06 | M18x1.5 | 10 | -6 | 47 | 21.0 | 22.0 | |
| SC803-18-06L | M18x1.5 | 10 | -6 | 53 | 27.0 | 22.0 | |
| SC803-22-08 | M22x1.5 | 12 | -8 | 54 | 25.5 | 27.0 | |
| SC803-22-08L | M22x1.5 | 12 | -8 | 59 | 30.5 | 27.0 | |
| SC803-26-10 | M26x1.5 | 16 | -10 | 57 | 25.5 | 32.0 | |
| SC803-26-10L | M26x1.5 | 16 | -10 | 63 | 32.0 | 32.0 | |
| SC803-30-12 | M30x2 | 20 | -12 | 63 | 27.5 | 36.0 | |
| SC803-30-12L | M30x2 | 20 | -12 | 71 | 35.0 | 36.0 | |
| SC803-36-16 | M36x2 | 25 | -16 | 71 | 29.0 | 41.0 | |
| SC803-36-16L | M36x2 | 25 | -16 | 79 | 36.5 | 41.0 | |
| SC803-45-20 | M45x2 | 32 | -20 | 86 | 38.0 | 50.0 | |
| SC803-52-24 | M52x2 | 40 | -24 | 102 | 45.0 | 60.0 | |
