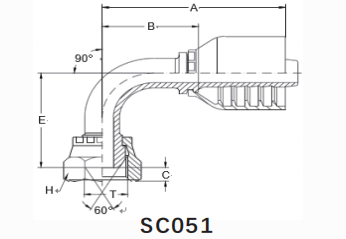

| 90'BSPP FEMALE 60°CONE | PART NO. | THREAD T | H0ST B0RE | DIMENSI0NS | ||||
| IS0 8434-6 | Nominal Bore （DN) | DASH Size | A | B | E | H | ||
  | SC051-04-04 | G1/4x19 | 6 | -4 | 53 | 30.0 | 34.0 | 19.0 |
| SC051-06-05 | G3/8x19 | 8 | -5 | 55 | 32.5 | 41.0 | 22.0 | |
| SC051-06-06 | G3/8x19 | 10 | -6 | 64 | 38.0 | 44.0 | 22.0 | |
| SC051-08-08 | G1/2x14 | 12 | -8 | 76 | 48.0 | 53.0 | 27.0 | |
| SC051-10-10 | G5/8x14 | 16 | -10 | 86 | 55.0 | 59.0 | 30.0 | |
| SC051-12-12 | G3/4x14 | 20 | -12 | 98 | 62.0 | 63.5 | 32.0 | |
| SC051-16-16 | G1x11 | 25 | -16 | 118 | 75.5 | 74.0 | 41.0 | |
| SC051-20-20 | G1-1/4x11 | 32 | -20 | 142 | 94.5 | 92.0 | 50.0 | |
| SC051-24-24 | G1-1/2x11 | 40 | -24 | 165 | 108.5 | 105.0 | 55.0 | |
