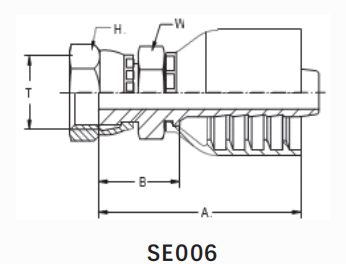

| ORFS FEMALE FLAT SEAT | PART NO. | THREAD T | H0ST B0RE | DIMENSI0NS | ||||
| ISO 8434-3--SAE J1453 | Nominal Bore （DN) | DASH Size | A | B | W | H | ||
 | SE006-12-12 | 1-3/16x12 | 20 | -12 | 67 | 31.0 | 30.0 | 36.0 |
| SE006-16-16 | 1-7/16x12 | 25 | -16 | 67 | 24.5 | 36.0 | 41.0 | |
| SE006-20-20 | 1-11/16x12 | 32 | -20 | 89 | 41.5 | 41.0 | 50.0 | |
| SE006-24-24 | 2x12 | 40 | -24 | 96 | 39.5 | 50.0 | 60.0 | |
