Technical Specifications
Inner Tube: Oil-resistant synthetic rubber.
Reinforcement: 4 or 6 layers of high-tensile steel wire spiral.
Cover: Black, abrasion-, ozone-, and weather-resistant synthetic rubber.
Temperature Range:
Max. Temperature for Air:
Steel Wire Spiral Hydraulic Hoses Steel Wire Spiral Hydraulic Hoses Steel Wire Spiral Hydraulic Hoses
| P/N | Nominal I.D. | Hose Size | Hose I.D. | Hose O.D. | Max. Working Pressure(MWP) | Minimum Burst Pressure（MBP) | Minimum Bend Radius (MBR) | Weight |
| PART NO. | MM | DASH | INCH | MM | MM | Mpa | Mpa | MM | G/M |

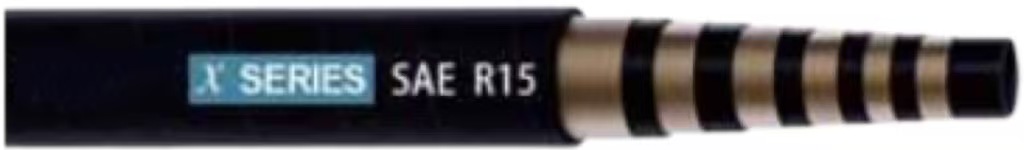

| R15B-06 | 10 | -6 | 3/8" | 9.5 | 23.3 | 42.0 | 168.0 | 150 | 760 |
| R15B-08 | 12 | -8 | 1/2" | 12.9 | 26.8 | 42.0 | 168.0 | 200 | 990 |
| R15B-12 | 19 | -12 | 3/4" | 19.2 | 36.1 | 42.0 | 168.0 | 265 | 1560 |
| R15B-16 | 25 | -16 | 1" | 25.4 | 42.9 | 42.0 | 168.0 | 330 | 1980 |
| R15B-20 | 31 | -20 | 1.1/4" | 31.8 | 50.6 | 42.0 | 168.0 | 445 | 2890 |
| R15B-24 | 38 | -24 | 1.1/2" | 38.1 | 58 | 42.0 | 168.0 | 530 | 4250 |
| R15B-32 | 51 | -32 | 2" | 50.8 | 71.8 | 42.0 | 168.0 | 660 | 5430 |
| R15B-40 | 65 | -40 | 2.1/2" | 63.5 | 85.8 | 35.0 | 140.0 | 790 | 6790 |

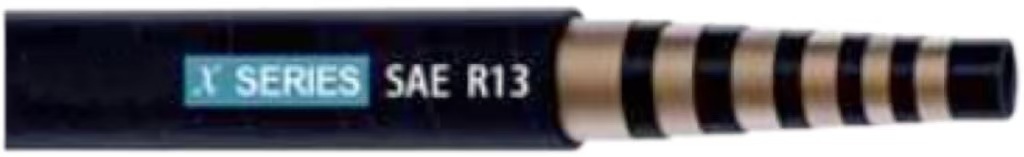

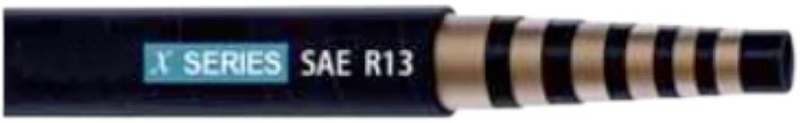

| R13B-06 | 10 | -6 | 3/8" | 9.5 | 22.4 | 69.0 | 276.0 | 152 |
|
| R13B-08 | 12 | -8 | 1/2" | 12.7 | 25.5 | 51.7 | 207.0 | 200 |
|
| R13B-12 | 19 | -12 | 3/4" | 19 | 31.9 | 35.0 | 140.0 | 240 |
|
| R13B-16 | 25 | -16 | 1 | 25.4 | 38.5 | 35.0 | 140.0 | 300 |
|
| R13B-20 | 32 | -20 | 11/4" | 31.8 | 49.6 | 35.0 | 140.0 | 420 |
|
| R13B-24 | 38 | -24 | 11/2" | 38.1 | 57.1 | 35.0 | 140.0 | 500 |
|
| R13B-32 | 51 | -32 | 2 | 50.8 | 70.9 | 35.0 | 140.0 | 640 |
|
