| P/N | Nominal I.D. | Hose Size | Hose I.D. | Hose O.D. | Max. Working Pressure(MWP) | Minimum Burst Pressure（MBP) | Minimum Bend Radius (MBR) | Weight |
| Technical Specifications | PART NO. | MM | DASH | INCH | MM | MM | Mpa | Mpa | MM | G/M |

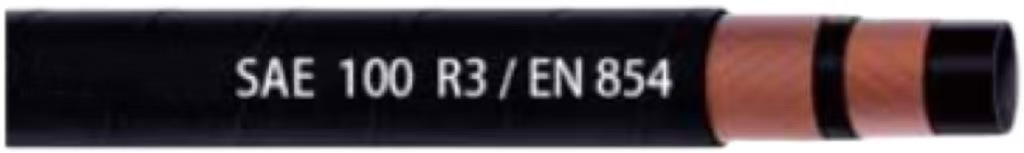

Inner Tube: Oil-resistant synthetic rubber.
Reinforcement: 2 layers of textile braid.
Cover: Black synthetic rubber, resistant to abrasion, weathering, and ozone.
Temperature Range:
-40 °C to +125 °C (-40 °F to +257 °F)
Max. Temperature for Air:
+70 °C (+160 °F) | R3-04 | 6 | -4 | 1/4" | 6.4 | 14.3 | 8.6 | 34.5 | 76 | 180 |
| R3-05 | 8 | -5 | 5/16" | 7.9 | 17.5 | 8.3 | 33.1 | 10.2 | 265 |
| R3-06 | 10 | -6 | 3/8" | 9.5 | 19.0 | 7.8 | 31.0 | 10.2 | 300 |
| R3-08 | 12 | -8 | 1/2" | 12.7 | 23.8 | 6.9 | 27.6 | 127 | 430 |
| R3-10 | 16 | -10 | 5/8" | 15.9 | 27.0 | 6.0 | 24.1 | 140 | 500 |
| R3-12 | 19 | -12 | 3/4" | 19 | 31.8 | 5.2 | 20.7 | 152 | 705 |
| R3-16 | 25 | -16 | 1 | 25.4 | 38.1 | 3.9 | 15.5 | 203 | 845 |
| R3-20 | 32 | -20 | 1-1/4" | 31.8 | 44.5 | 2.6 | 10.3 | 254 | 995 |
| R3-24 | 38 | -24 | 1-1/2" | 38.1 | 50.8 | 1.7 | 6.9 | 306 | 1170 |
| R3-32 | 51 | -32 | 2 | 50.8 | 64.0 | 1.5 | 6.0 | 410 | 1486 |

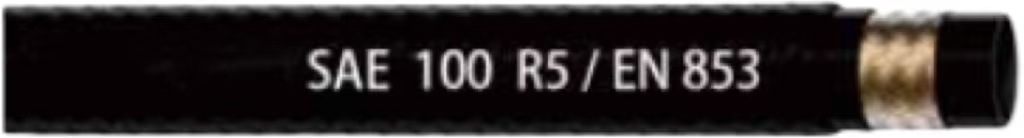

Inner Tube: Oil-resistant synthetic rubber.
Reinforcement: 2 layers of textile braid with 1 layer of steel wire.
Cover: Textile braid impregnated with synthetic rubber.
Temperature Range:
-40 °C to +125 °C (-40 °F to +257 °F)
Max. Temperature for Air:
+70 °C (+160 °F) | R5-04 | 6 | -4 | 3/16" | 4.8 | 12.9 | 20.7 | 82.8 | 76 | 250 |
| R5-05 | 8 | -5 | 1/4" | 6.4 | 14.5 | 20.7 | 82.8 | 86 | 290 |
| R5-06 | 10 | -6 | 5/16" | 7.9 | 16.8 | 15.5 | 62.0 | 102 | 355 |
| R5-08 | 12 | -8 | 13/32" | 10.3 | 19.1 | 13.9 | 55.6 | 117 | 415 |
| R5-10 | 16 | -10 | 1/2" | 12.7 | 22.9 | 12.1 | 48.4 | 140 | 570 |
| R5-12 | 19 | -12 | 5/8" | 15.9 | 27.1 | 10.3 | 41.2 | 165 | 705 |
| R5-16 | 25 | -16 | 7/8" | 22.2 | 30.8 | 5.5 | 22.0 | 187 | 700 |
| R5-20 | 32 | -20 | 1-1/8" | 28.6 | 37.6 | 4.3 | 17.2 | 229 | 925 |
| R5-24 | 38 | -24 | 1-3/8" | 34.9 | 44.5 | 3.4 | 13.6 | 267 | 1150 |
| R5-32 | 51 | -32 | 1-13/16" | 46 | 56.4 | 2.4 | 9.6 | 337 | 1390 |
| R5-40 | 64 | -40 | 2-3/8" | 60.3 | 73 | 2.4 | 9.6 | 610 | 2305 |
Technical Specifications

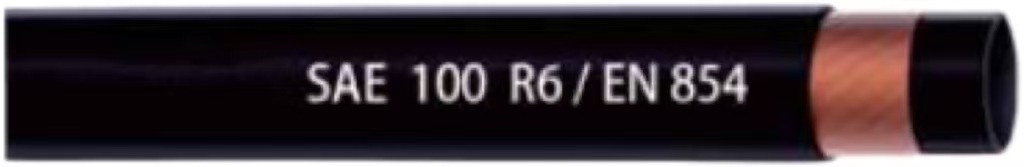

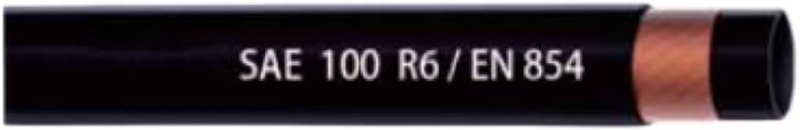

Inner Tube: Oil-resistant synthetic rubber.
Reinforcement: 1 layer of textile braid.
Cover: Black synthetic rubber, resistant to abrasion, weathering, and ozone.
Temperature Range:
-40 °C to +120 °C (-40 °F to +248 °F)
Max. Temperature for Air:
+70 °C (+160 °F) | R6-04 | 6 | -4 | 1/4" | 6.4 | 12.7 | 2.8 | 11.0 | 64 | 105 |
| R6-05 | 8 | -5 | 5/16" | 7.9 | 14.3 | 2.8 | 11.0 | 76 | 125 |
| R6-06 | 10 | -6 | 3/8" | 9.5 | 15.9 | 2.8 | 11.0 | 76 | 150 |
| R6-08 | 12 | -8 | 1/2" | 12.7 | 19.8 | 2.8 | 11.0 | 102 | 200 |
| R6-10 | 16 | -10 | 5/8" | 15.9 | 23 | 2.4 | 9.7 | 127 | 255 |
| R6-12 | 19 | -12 | 3/4" | 19 | 26 | 2.1 | 8.3 | 152 | 305 |
| R6-16 | 25 | -16 | 1 | 25.4 | 32.5 | 1.3 | 5.2 | 230 | 455 |
